[days04] 1) 체크(아이콘) 표 만들기 2) 사원 칩 만들기 3)막대그래프 본문

Web/HTML

[days04] 1) 체크(아이콘) 표 만들기 2) 사원 칩 만들기 3)막대그래프

　다연　 2020. 12. 8. 18:42
반응형

1) 체크 표 만들기

여기서 X표와 체크표는 아이콘이다!



<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Insert title here</title>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/4.7.0/css/font-awesome.min.css">


<style>
table{
width: 100%;
border: 1px solid #ddd;
border-spacing: 0; /* 셀과 셀사이 간격 */
border-collapse: collapse;
}

th, td{
text-align: center;
padding: 16px;
}

th:first-child, td:first-child {
	text-align: left;
}

tr:nth-child(even) {
	background: #f2f2f2;
}

.fa-check{
	color: green;
}
.fa-remove{
	color: red;
}

</style>
</head>
<body>
<table>
<tr>
	<th style="width: 50%">Features</th>
	<th>Basic</th>
	<th>Pro</th>
</tr>

<tr>
	<td>Sample text</td>
	<td><i class="fa fa-remove"></i></td>
	<td><i class="fa fa-check"></i></td>
</tr>
<tr>
	<td>Sample text</td>
	<td><i class="fa fa-check"></i></td>
	<td><i class="fa fa-check"></i></td>
</tr>

<tr>
	<td>Sample text</td>
	<td><i class="fa fa-check"></i></td>
	<td><i class="fa fa-remove"></i></td>
</tr>

<tr>
	<td>Sample text</td>
	<td><i class="fa fa-check"></i></td>
	<td><i class="fa fa-check"></i></td>
</tr>
<tr>
	<td>Sample text</td>
	<td><i class="fa fa-remove"></i></td>
	<td><i class="fa fa-check"></i></td>
</tr>

</table>
</body>
</html>









2) 사원 칩 만들기

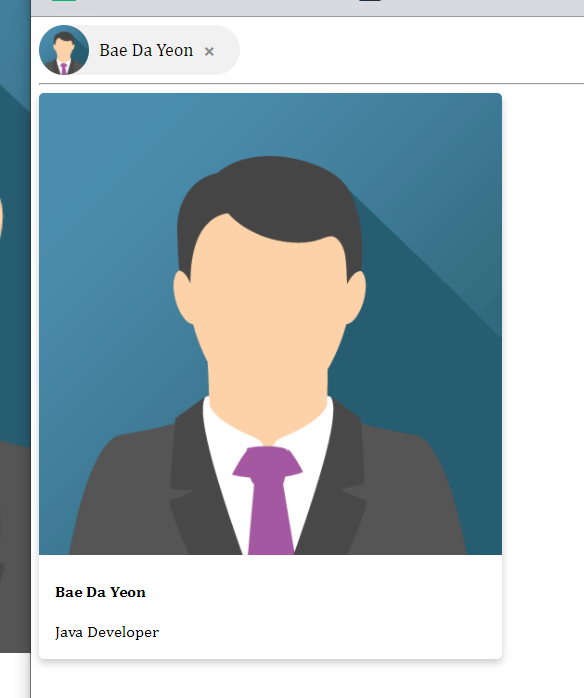

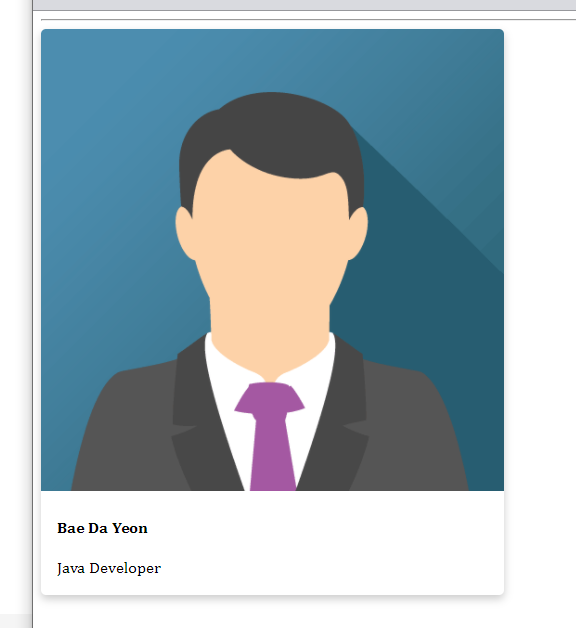

위 칩의 x표를 누르면 밑처럼 사라진다.

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Insert title here</title>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>

<style>
	.card{
		width: 40%;
		border-radius: 5px;
		transition:0.3s;
		box-shadow: 0 4px 8px 0 rgba(0,0,0,0.2);
	}
	.card:hover {
		box-shadow: 0 8px 16px 0 rgba(0,0,0,0.2);
	}
	.card img{
	 width: 100%; /* 이거 안주면 이미지 크기 안줄어들고 크게있음 */
	 border-radius: 5px 5px 0 0; /* 위에 두개만 라운드 */
	}
	.container{
		padding: 2px 16px;
	}
</style>

<style>
	.chip img{
		width: 50px;
		height: 50px;

		border-radius: 25px;
		float: left;

		margin-left: -25px;
		margin-right: 10px;
	}
	.chip{
		display: inline-block;
		padding: 0 25px;
		height: 50px;
		line-height: 50px; /* line-height와 height 같이 맞추면 가운데 정렬 */
		font-size: 18px;
		border-radius: 25px;
		background: #f1f1f1;
	}
	.closebtn{
		color: #888;
		font-size: 20px;
		font-weight: bold;
		padding-left: 10px;

		float: right;
	}
	.closebtn:hover{
		color: #000;
		cursor: pointer;
	}
</style>

</head>
<body>

<!-- .chip>img+span -->
<div class="chip">
	<img src="../images/img_avatar.png" alt="Person" />
	Bae Da Yeon
	<span class="closebtn" onclick="this.parentElement.style.display='none'">&times;</span>
				<!--여기서 this는 span이고 chip을 사라지게 해야하니까 parentElement  -->
</div>

<hr>
<!-- .card>img+.container>h4>b^p -->
<div class="card">
	<img src="../images/img_avatar3.png" alt="" />
	<div class="container">
		<h4><b>Bae Da Yeon</b></h4>
		<p>Java Developer</p>
	</div>
</div>
</body>
</html>

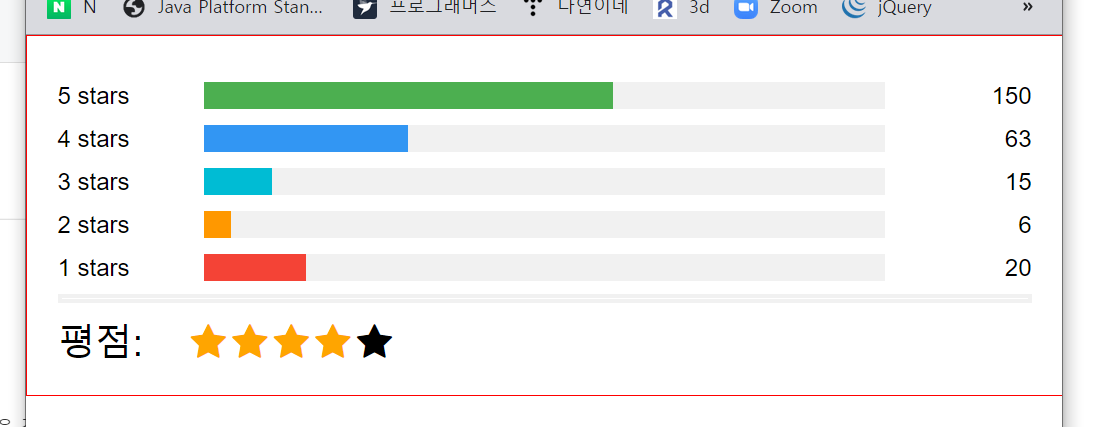

3) 막대 그래프



너비가 400px보다 좁은 경우 일렬로 서고, 오른쪽의 숫자가 사라진다.

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Insert title here</title>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/4.7.0/css/font-awesome.min.css">

<style>
	*{
		box-sizing: border-box;
	}
	body{
		font-family: Arial;
		border: 1px solid red;
		padding: 20px;
		max-width: 800px;
		margin: 0 auto; /* 가운데 */
		height: 100%;
	}
</style>

<style>
	.heading{
		font-size: 25px;
		margin-right: 25px;
	}

	.fa{
		font-size: 25px;
	}

	.checked{
		color: orange;
	}
</style>

<style>
	.side{
		float: left;
		width: 15%;
		margin-top: 10px;
	}
	.middle{
		float: left;
		width: 70%;
		margin-top: 10px;
	}
	.bar-container{ /* 반응형할때는 %로 주면 크기 맞춰질 것 */
		width: 100%; /* 부모가 70%고 그에대해 100%로 꽉 채우겠단 */
		background: #f1f1f1;
		text-align: center;
		color: white;
	}
	.right{
		text-align: right;
	}

	.row::after{ /* 모두를 감싼 div  */
		content: "";
		clear: both; /* 떠다니는거 취소 */
		display: table;
	}

	/*막대그래프(bar)를 그리자  */
	.bar-5{width: 60%; height: 18px; background: #4CAF50;} /* 부모의 60%니까 */
	.bar-4{width: 30%; height: 18px; background: #3296F3;}
	.bar-3{width: 10%; height: 18px; background: #00BCD4;}
	.bar-2{width: 4%; height: 18px; background: #FF9800;}
	.bar-1{width: 15%; height: 18px; background: #F44336;}
</style>

<style>
@media screen and (max-width:400px){
	.side, .middle{
		width: 100%;
	}
	.right{
		display: none;
	}
}
</style>

</head>
<body>
<div class="row">

	<div class="side">
		<div>5 stars</div>
	</div>
	<div class="middle">
		<div class="bar-container">
			<div class="bar-5"></div>
		</div>
	</div>
	<div class="side right">
		<div>150</div>
	</div>

	<div class="side">
		<div>4 stars</div>
	</div>
	<div class="middle">
		<div class="bar-container">
			<div class="bar-4"></div>
		</div>
	</div>
	<div class="side right">
		<div>63</div>
	</div>

	<div class="side">
		<div>3 stars</div>
	</div>
	<div class="middle">
		<div class="bar-container">
			<div class="bar-3"></div>
		</div>
	</div>
	<div class="side right">
		<div>15</div>
	</div>

	<div class="side">
		<div>2 stars</div>
	</div>
	<div class="middle">
		<div class="bar-container">
			<div class="bar-2"></div>
		</div>
	</div>
	<div class="side right">
		<div>6</div>
	</div>

	<div class="side">
		<div>1 stars</div>
	</div>
	<div class="middle">
		<div class="bar-container">
			<div class="bar-1"></div>
		</div>
	</div>
	<div class="side right">
		<div>20</div>
	</div>

</div>
<hr style="border: 3px solid #f1f1f1" />
<span class="heading">평점: </span>
<!-- span.fa.fa-star.checked*5 -->
<span class="fa fa-star checked"></span>
<span class="fa fa-star checked"></span>
<span class="fa fa-star checked"></span>
<span class="fa fa-star checked"></span>
<span class="fa fa-star"></span>
</body>
</html>
